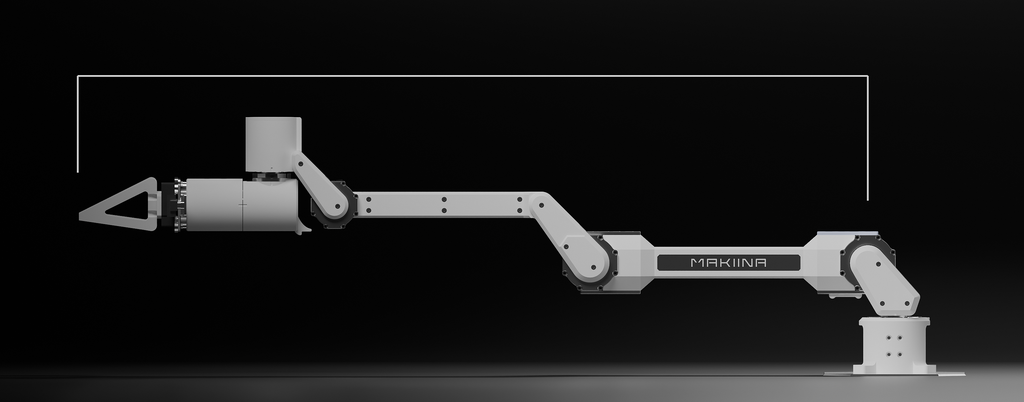

MAKIINA arm at full extension, 720 mm reach

MAKIINA Single Arm

$699.00
Skip to product information
MAKIINA arm at full extension, 720 mm reach
  • MAKIINA arm at full extension, 720 mm reach

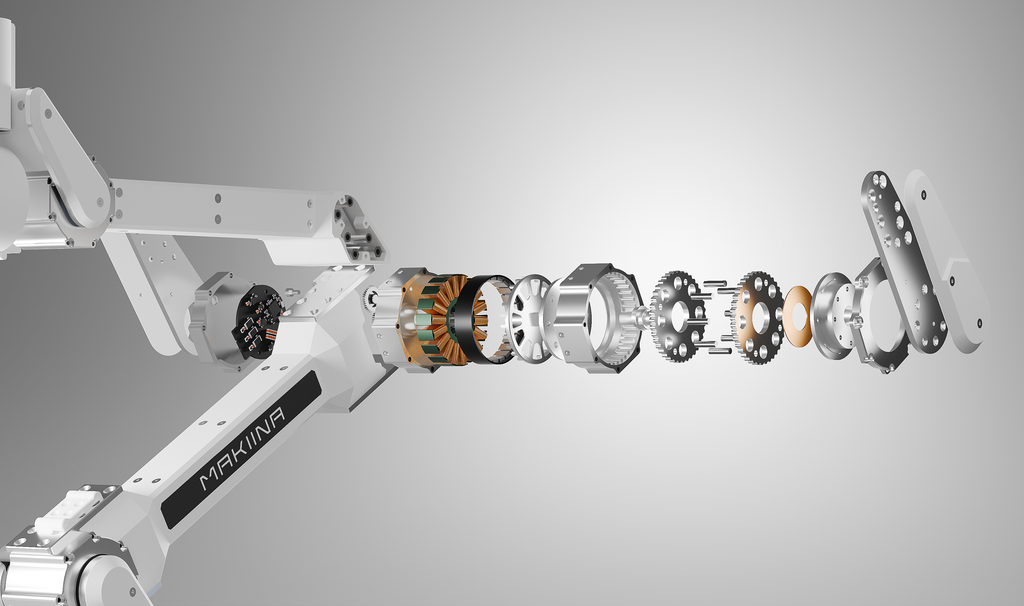

  • MAKIINA cycloidal actuator, exploded view

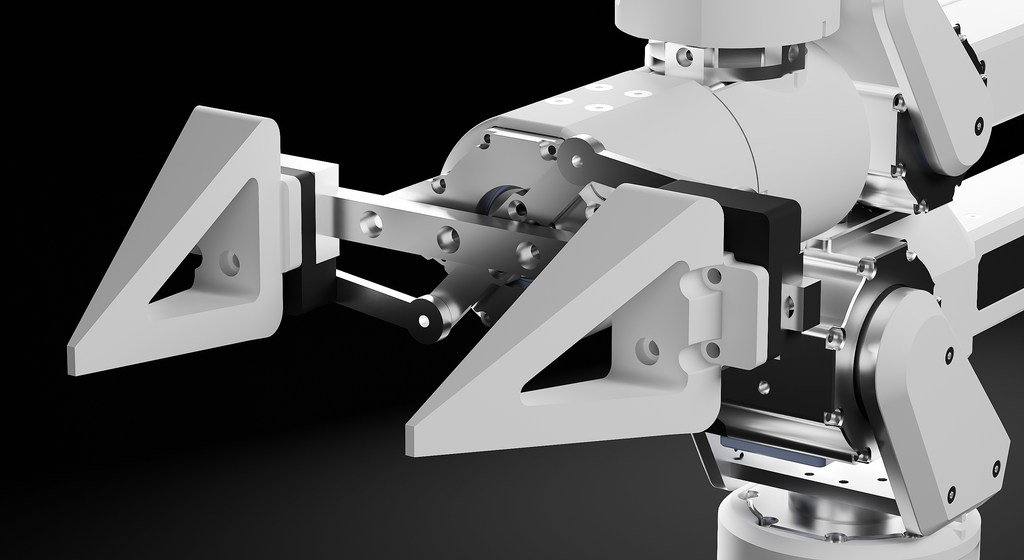

  • CNC machined parallel gripper
  • MAKIINA arm at full extension, 720 mm reach
  • MAKIINA cycloidal actuator, exploded view
  • CNC machined parallel gripper
MAKIINA Single Arm

MAKIINA Single Arm

$699.00

An AI-first robotic arm. Six degrees of freedom plus gripper, 720 mm reach in the extended edition, ultra lightweight at 2.4 kg, and an all-metal body in CNC machined aluminum. Designed, manufactured and assembled in Finland.

  • One arm
  • Ultra lightweight, 2.4 kg
  • Parallel gripper
  • CAN adapter
  • Python API, LeRobot compatible

Every joint runs a MAKIINA cycloidal actuator, designed and machined in house. 22 Nm peak torque at the base joints, 14 kHz FOC loop, position and torque control modes.

Input power: 24 V, 500 W power supply required.
